Can we develop real-world prognostic models using observational healthcare data? Large-scale experiment to investigate model sensitivity to database and phenotypes

Abstract

Background

Large observational healthcare databases are frequently used to develop models to be implemented in real-world clinical practice populations. For example, these databases were used to develop COVID severity models that guided interventions such as who to prioritize vaccinating during the pandemic. However, the clinical setting and observational databases often differ in the types of patients (case mix), and it is a nontrivial process to identify patients with medical conditions (phenotyping) in these databases. In this study, we investigate how sensitive a model’s performance is to the choice of development database, population, and outcome phenotype.

Methods

We developed > 450 different logistic regression models for nine prediction tasks across seven databases with a range of suitable population and outcome phenotypes. Performance stability within tasks was calculated by applying each model to data created by permuting the database, population, or outcome phenotype. We investigate performance (AUROC, scaled Brier, and calibration-in-the-large) stability and individual risk estimate stability.

Results

In general, changing the outcome definitions or population phenotype made little impact on the model validation discrimination. However, validation discrimination was unstable when the database changed. Calibration and Brier performance were unstable when the population, outcome definition, or database changed. This may be problematic if a model developed using observational data is implemented in a real-world setting.

Conclusions

These results highlight the importance of validating a model developed using observational data in the clinical setting prior to using it for decision-making. Calibration and Brier score should be evaluated to prevent miscalibrated risk estimates being used to aid clinical decisions.

Introduction

Large observational healthcare databases, such as insurance claims data or electronic healthcare data, can be used to develop health prediction models that get implemented in various real-world settings [1]. For example, QRISK is a model that was trained using data from a subset of primary care practices in the UK. The model predicts 10-year risk of cardiovascular disease and has been implemented in the UK to identify patients who may benefit from risk-lowering interventions such as initiating statins [2]. The Revised Cardiac Risk Index (RCRI) is a model that is commonly applied preoperatively to estimate the perioperative risk of cardiovascular complications [3]. Recently, when the COVID pandemic started, researchers used these databases to develop models to identify which patients were at highest risk of serve COVID outcomes [4,5,6]. These COVID models were developed using observational data, but the aim was often to apply the models in clinical settings to identify which patients should have been prioritized a COVID vaccination or other forms of intervention [7].

Targeted validation is a term that represents validating a model in the intended setting [8]. This is an important consideration for models developed using observational healthcare data that will be implemented in real-world clinical settings. Observational healthcare databases may not contain a representative sample of the intended clinical population (i.e., if a model is developed using US insurance claims data that includes patients who are commercially employed, these patients are likely to be younger and healthier than the average US population). In addition, it is not always clear how to identify patients with medical conditions in observational healthcare data (rule-based criteria are often used, but these are subjective, and chart review to assess accuracy is not always feasible in claims data). When a model developed using observational healthcare data is transported into a clinical setting, the model performance can be impacted by numerous factors including (i) change in patient case mix, (ii) missing predictors, (iii) predictors that have different meaning, (iv) change in implementation timing (e.g., applying the model at the first visit of the year vs at the first record of some medical condition), (v) outcome difference (i.e., the model was developed using patients with more or less severe outcomes, or there was differential measurement error in the outcome between the training data and targeted application). Prior studies have shown a deterioration in performance when models are transported across databases [9]. However, there has been a lack of research into the impact that these different factors, and their interactions, have on transported model performance.

In particular, there has been little research into how much the population and outcome definitions impact a model’s performance stability. A large amount of work is often required by researchers to develop rule-based criteria or models that aim to identify patients with medical conditions of interest in observation healthcare datasets [10]. This process is known as phenotyping, and the definition is referred to as a phenotype definition. For example, Cai et al. used the rule-based phenotype of having a diagnosis ICD- 9 code: 410.XX in the primary position during an inpatient visit for identifying acute myocardial infarction [11]. However, it is common for different researchers to use different phenotype definitions for the same medical condition, as seen for acute myocardial infarction [12]. It is of interest to determine how sensitive a prediction model is to the choice of population and outcome phenotype. If a model’s performance varies substantially based on these choices, then extensive work needs to be performed to ensure accurate phenotypes, which match the intended target population, are used.

In this study, we develop and validate prediction models for nine prediction tasks across seven observational databases, three populations with different prediction indexes, and three to four outcome definitions per task to investigate model stability. We investigate stability by permuting the database, population, and/or outcome definition. Stability is investigated in terms of overall performance metrics (discrimination, calibration, and Brier score) and individual predicted risks [13]. This serves as a proxy for how stable model performance may be between the development database performance and targeted validation performance. It will provide insight into the impact that choice of development database, incorrectly defining populations or using noisy outcomes, has on model stability.

Methods

Aims

We aim to investigate how stable model performance is when there is a change to the following:

• 1) The population (e.g., the model is developed using a development population consisting of patients with an outpatient visit in 2017, index is first visit, and then the model is validated using a population of patients observed in the database during 2017, but index is Jan 1, 2017). Changing the population impacts case mix and implementation timing.

• 2) The outcome definition (e.g., the model is developed using rule-based criteria to identify acute myocardial infarction that consists of a patient having a single code representing acute myocardial infarction but is applied using rule-based criteria requiring a patient to have a single code representing acute myocardial infarction during an inpatient visit). Changing the outcome definition impacts the outcome measurement error.

• 3) The development database (e.g., the model is developed in database 1 and validated in database 2). Changing the database impacts the case mix, the prediction meaning, and which predictors are available.

• 4) The population, outcome definition, and/or database to investigate the interaction between these factors on model stability.

We will measure model stability using previously defined stability levels: level 1 (comparing change in performance metrics) and level 4 (comparing changes in individual risk estimates for a selection of patients) [13].

Data

We use seven observational databases in this study. All databases are converted into the Observational Medical Outcomes Partnership (OMOP) common data model (CDM) format [14] that use standardized vocabularies for recording medical events. Full database details are available in Table 1.

Table 1 The databases used in this study

The use of JMDC, IQVIA, Merative MarketScan®, and Optum databases were reviewed by the New England Institutional Review Board and were determined to be exempt from broad Institutional Review Board approval.

Prediction task

In this study, we follow the proposed prediction framework by Reps et al. [15].

To determine how stable model performance is, we focus on the prediction tasks of developing models that predict various COVID- 19 vaccine outcomes of interest listed by the US Food and Drug Administration (FDA) for the general population (as vaccines are available for every adult in the USA). We chose these tasks as the prediction models need to be valid for the whole adult population, but this makes the choice of development population and database unclear. We chose a population of non-COVID vaccine users since when these models would have been useful, there would have been little data on COVID vaccinations in observational data. Using a proxy target population was common at the beginning of the pandemic [5].

We chose three realistic (researchers may use them) populations for the tasks:

• 1) Patients with a recorded healthcare visit in 2017 with 365 days or more observation time in the database prior to the visit. Index was the first of these visits per patient. This population is suitable if the model would be applied during a patient’s first healthcare interaction in any year.

• 2) Patients with a recorded influenza vaccine in 2017 with 365 days or more observation time in the database prior to the influenza vaccine. Index was vaccine date. This population is suitable if the model would be applied when a patient is vaccinated each year.

• 3) Patients observed in the database during 2017 with 365 days or more observation time in the database prior to Jan 1, 2017. Index was Jan 1, 2017. This population is suitable if the model would be applied every year on the 1 st of January.

We restricted to the year 2017 to avoid using data from 2019 onwards as this was impacted by the pandemic. As some of the populations were large, we took a random sample of 2 million patients when the population was greater than 2 million patients.

We focus on nine prediction tasks, specifically predicting the first-time occurrence of nine outcomes from 1 day until 365 days after index. The nine outcomes were as follows: acute myocardial infarction (acute MI), anaphylaxis, appendicitis, disseminated intravascular coagulation (disintracoag), encephalomyelitis, Guillain–Barre syndrome, hemorrhagic stroke, nonhemorrhagic stroke, and pulmonary embolism. These outcomes were chosen as they have been identified as COVID- 19 vaccine outcomes of interest by the FDA, and we wanted to see whether observational healthcare databases could be used to predict these outcomes for the general population. For each prediction task, we developed models using three different outcome phenotype definitions (except nonhemorrhagic stroke that had four). In general, the first phenotype was a standardized definition that looked for at least one occurrence of a diagnosis code corresponding to the clinical idea, as defined by the OHDSI standardized vocabularies. The second phenotype identified outcomes based on occurrence of a diagnosis code within an inpatient visit. The third phenotype definitions were based on a narrower set of diagnosis codes derived from ICD-based code lists. The fourth nonhemorrhagic stroke phenotype used a broader set of diagnosis codes. Full details of the definitions are available in Supplementary section A.

Right censoring can occur as we are using retrospectively collected observational data to develop the models using a cohort design. This is when patients are not observed for the full 1-year follow-up. In this study, we included patients who were only partially observed for the 1-year follow-up based on a prior study [16]. It was shown that a small amount of class label noise is better than introducing bias by removing patients with uncertain class labels.

Predictors

Candidate predictors were constructed using one-hot encoding for any medical code, drug code, procedure code, measurement code, or observation code recorded in the database. In addition, age in 5-year buckets (e.g., 0–4, 5–9, 10–14) and gender were also included. In total, over 19,000 candidate predictors were used in this study, but this number varied by database. These predictors have been used in prior studies and result in better-performing models than using a small number of prespecified predictors when developing LASSO logistic regression models [17].

Model development

We developed models for each combination of database, population, and outcome definition per prediction task. For each model, we trained a LASSO logistic regression model [18] using threefold cross validation with the train data (75% of the data) to pick the optimal regularization hyper-parameter. Three-fold cross validation has been shown sufficient for big data [19]. Using the optimal hyper-parameter value, the hyper-parameter that maximized the likelihood, the final model was fit using all the train data. The test data (remaining 25% of the data) was used to internally validate the model.

Validation

Validation of each model was performed by applying the model to all test datasets for the same prediction task (permuting databases, populations, and/or outcome definitions). This corresponded to each model being validated > 50 times (7 databases × 3 populations × 3 outcome definitions).

Performance metrics

Performance was evaluated using the area under the receiver operating curve (AUROC) [20], area under the precision recall curve (AUPRC), scaled Brier score, and calibration-in-the-large ratio (mean predicted risk divided by mean observed risk). The AUROC is a measure of discrimination that corresponds to the probability that a randomly selected patient who had the outcome in the year after index will be assigned a higher risk by the model than a randomly select patient who did not have the outcome. An AUROC of 0.5 corresponds to randomly assigning risk, and an AUROC of 1 corresponds to a model that can perfectly discriminate between those who will experience the outcome vs those who will not. AUPRC is another measure of discrimination but is preferred over the AUROC when the outcome is rare. The scaled Brier score is a measure of prediction accuracy. It corresponds to 1 minus the Brier score (mean squared error) divided by the Brier score for a model that predicts the mean observed risk. The calibration-in-the-large ratio provides insight into the model calibration on average.

Stability performance

To assess performance stability (level 1), we applied all models developed for the task of interest (e.g., nonhemorrhagic stroke) to each test dataset for this task (all combinations of database, population, and outcome definition). We then compare the performance of the model developed using the test dataset (internal performance) with the “stability” performances of all the other models developed with different datasets for the task. We then plot the internal performance against the stability performances to visualize how stable the performances are across choice of database, population, and outcome definition.

To assess individual risk stability (level 4) we calculated the mean absolute predictor error (MAPE). The per patient MAPE is calculated as the mean absolute difference between the original model (model developed on the same dataset that the patient is from) predicted risk for the patient and the sensitivity models' (models developed on data where the database, population, and/or outcome definition was permuted) predicted risks for the patient. We then calculate the average MAPE across all patients in the test set. We plot the original model prediction against other predictions obtained from the sensitivity models (prediction instability plot) and the original model prediction against the MAPE (MAPE instability plot).

The code to perform the analyses is available at https://github.com/ohdsi-studies/Covid19VaccinePrediction and readily implementable on any data mapped to the OMOP common data model.

Results and discussion

The number of outcomes within the population varied by database and outcome definition (see Fig. 1). Most datasets contain approximately 2 million patients, see Supplementary B: Fig. 1. Guillain–Barre syndrome and encephalomyelitis were the rarest outcomes investigated, with many databases containing less than 100 patients with the outcome. The cardiovascular outcomes were generally the most common with most databases and outcome definitions containing more than 1000 patients with the outcome, which is the number that the LASSO logistic regression performance often starts to stabilize [21]. Four-hundred seventy-five models were developed, and internal discriminative performance across these models varied (see Supplement C). Comparing train AUROC and test AUROC indicates most models were not overfit (see Supplement C). A total of 237 (49.9%) models were developed using data with > 1000 patients with the outcome. We focus on results corresponding to the 237 models (and validations in the 237 datasets with > = 1000 patient with the outcome) as these models were less likely to be overfit and the validation performance point estimates will be more stable.

Fig. 1

Heatmap showing the number of outcomes in each dataset used to develop the models. Each cell corresponds to a dataset created with a database, population, and outcome definition combination. The cell values correspond to the number of patients in the dataset with the outcome during the time at risk. Approximately half of the datasets had > = 1000 patients with the outcome. IP, inpatient visit; FDA, Food and Drug Administration; IPED, inpatient or emergency department visit

Figures 2, 3 and 4 show the AUROC stability, calibration stability, and Brier score stability, respectively, when the population, outcome definition, or both are changed between model development and validation. The bottom four rows correspond to when the model development and validation had a different database (colored red), and the top three rows correspond to when the model development and validation were on the same database (colored blue). AUPRC showed a similar trend to AUROC (see Supplement D).

Fig. 2

Internal AUROC vs stability AUROC when the models are developed and validated in the same database (top three rows) or different database (bottom four rows). The columns “ > = 1000 Outcomes,” “ > = 500 Outcomes,” and “All results” represent only including models and validations where the dataset contained > = 1000 patients with the outcome, only including models and validations where the dataset contained > = 500 patients with the outcome, and all models and validations, respectively. Each row corresponds to a different validation data permutation compared to the model development data (e.g., the population, outcome definition, and/or the database is changed)

Fig. 3

Internal calibration-in-the-large ratio (mean predicted risk divided by mean observed risk) vs stability calibration-in-the-large ratio when the models are developed and validated in the same database (top three rows) or different database (bottom four rows). The columns “ > = 1000 Outcomes,” “ > = 500 Outcomes,” and “All results” represent only including models and validations where the dataset contained > = 1000 patients with the outcome, only including models and validations where the dataset contained > = 500 patients with the outcome, and all models and validations, respectively. Each row corresponds to a different validation data permutation compared to the model development data (e.g., the population, outcome definition, and/or the database is changed)

Fig. 4

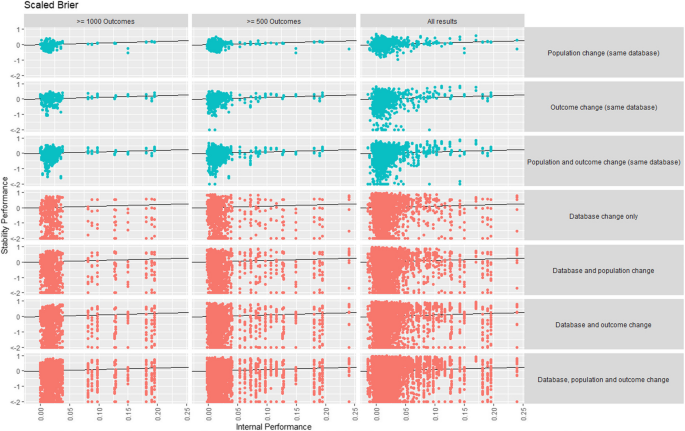

Internal scaled Brier score vs stability scaled Brier score when the models are developed and validated in the same database (top three rows) or different database (bottom four rows). The columns “ > = 1000 Outcomes,” “ > = 500 Outcomes,” and “All results” represent only including models and validations where the dataset contained > = 1000 patients with the outcome, only including models and validations where the dataset contained > = 500 patients with the outcome, and all models and validations, respectively. Each row corresponds to a different validation data permutation compared to the model development data (e.g., the population, outcome definition, and/or the database is changed)

Figures 5 and 6 illustrate the individual prediction risk stability. Figure 5 shows that overall changing the population, outcome definition, and/or database can result in very unstable individual prediction risk estimates as there was large variance in the predicted risks per patient. Figure 6 shows the MAPE is generally higher when the development and validation databases differed, but there was still instability in individual risk estimates when only the population or outcome definition differed.

Fig. 5

Prediction instability plot showing the stability predictions (of models developed using a different population, outcome definition, and/or database) against the internal prediction for a random selection of 100 patients per test set

Fig. 6

MAPE instability plot when applying models that (1) have a change in population, outcome, and/or database, (ii) models that only have a change in population between development and validation, (iii) models that only have a change in outcome definition between development and validation, and (iv) models that only have a change in database between development and validation. These plots used a randomly selected 100 patients from each test set

Changing population

Figure 2 shows that the AUROC was generally stable when only the population was changed as the row corresponding to “Population change (same database)” shows the dots are on or near the x = y line when the database was consistent. However, changing the population and database can result in unstable AUROC (the dots on the row “Database and population change” were sometimes far from the x = y line). The AUPRC had a similar trend to the AUROC (see Supplement D). Interestingly, the scaled Brier score, the calibration-in-the-large ratio, and the individual predicted risks were unstable when only the population changed and even more unstable when the population and database changed.

The results suggest that discrimination, which often focuses on how well the model ranks patients based on risk, is only moderately impacted when there is only a change in population between model development and validation. However, the actual predicted risk value is unstable. It may be possible to improve predicted risk value stability by recalibrating the model in the dataset the model is transported into.

Changing outcome definition

Figure 2 shows that the AUROC was generally stable when only the outcome definition was changed as the dots fall on or near the x = y line for the row “Outcome change (same database).” However, changing the outcome definition and database can result in unstable AUROC (as the dots were sometimes far from the x = y line for the row “Database and outcome change”). The AUPRC had a similar trend to the AUROC (see Supplement D). Interestingly, the scaled Brier score, the calibration-in-the-large ratio, and the individual predicted risks were unstable when only the outcome changed and even more unstable when the outcome and database changed. Changing the outcome definition had a similar impact to changing the population.

Changing database

Figures 3, 4, and 5 show that when the database was changed, all performance metrics were unstable as the red dots did not fall on or near the x = y line for the rows indicating the database was changed. Changing the database appears to have the greatest impact on model performance stability across all metrics and individual risk predictions.

Changing population, outcome definition, and/or database

AUROC and AUPRC were stable across changing the population and outcome definition. The accuracy metrics such as scaled Brier score and calibration-in-the-large were unstable. Individual risks were also unstable. Any change that included changing the database led to highly unstable performance metric results and individual predicted risk results.

In summary, we see that models are unstable, both in terms of population-level performance and individual-level predicted risk, when implemented in a new database. If only the population and outcome definitions are changed, the discriminative performance is stable, but other metrics and individual risks are unstable. Given this information, we highlight the importance of targeted validation, where a model developed in observational data is tested in the clinical setting it will be implemented in prior to use, as the model may perform much worse, which potentially could cause harm. In addition, recalibration in the target setting may be required.

Limitations

For the population sensitivity, the index date differed (Jan 1 st, random visit, influenza date), but some patients may overlap between the populations when the model was developed and validated in the same database. Therefore, there may be correlations between the patients used to develop the model and the patients used to validate the model when assessing stability. This may make the models appear more stable.

In this study we only investigated three population cohorts. The results may not hold for different populations. In addition, we only considered 3–4 outcome definitions per prediction task, and the definitions used were developed carefully. The result that the discrimination performances are often stable across slight changes to the outcome definition may not hold if a highly inaccurate outcome definition is used to develop a model.

The results show that the performances were more unstable when including models developed using data with a low number of patients with the outcome and including validations in data where there was low number of patients with the outcome. It is unclear whether this is due to unstable point estimates or unstable models. However, we presented models and validations that used data with > 1000 patients with the outcome separately to try and minimize the impact of model overfitting and point estimate instability on stability insights.

In this study, we developed generalized linear models that did not include interaction terms. It is possible to develop models that work well across case mixes by adding suitable interaction terms. Future work could replicate this study but include age/sex interaction terms to see whether the performance and individual risks are more stable across databases when interactions are used.

Finally, we did not perform any form of recalibration using the validation data. Miscalibration could be fixed by recalibrating using some of the validation data. This may lead to more stable Brier score, calibration, and individual risk estimates. Future work could investigate recalibrating the models to see whether that improves stability.

Conclusion

This study investigated the impact that changing the database or population or outcome definition has on prediction performance and individual risk estimates. This is important if researchers are aiming to develop models using a single database that would be applied outside the database setting (e.g., in a real-world clinical population). The results show that small changes in the outcome definition are unlikely to have a large impact on the discriminative performance. This is important as outcome phenotype definitions are likely to have measurement error in observational data. Surprisingly, the discrimination performances were generally robust across different populations and index dates in this study (first visit, influenza vaccine visit, or random visit) but were unstable when the database changed. Calibration and Brier score appear to be unstable across changes to the outcome definition, population, and database. This highlights the need to recalibrate models when they are transported into new patient populations. Model performance was also more unstable when the outcome is rare (< 1000 patients with the outcomes in the data). We therefore recommend, in agreement with other publications [8], that researchers validate any model in the clinical setting it will be applied to prior to using it for decision-making. In addition, we suggest a performance sensitivity analysis is implemented investigating different population definitions and outcome definitions if a model is developed in a database where the outcome occurs in less than 1000 patients (i.e., the outcome is rare).
